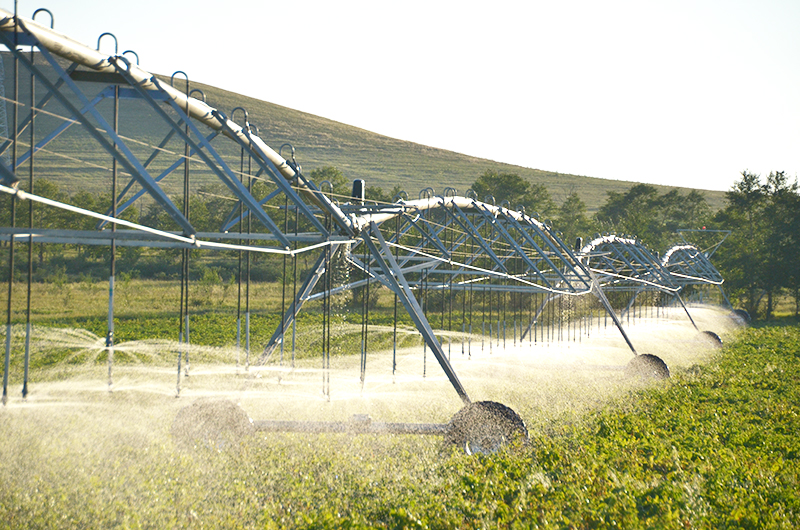

UNIVERSAL LATERAL AND ROTARY IRRIGATION MACHINE
It is a universal irrigation machine integrating center pivot and lateral type, which can not only effect reciprocate walking, but also can be compatible with the rotary function of center pivot. It maximizes the use of the land and elevates the concept of irrigation to a new level.

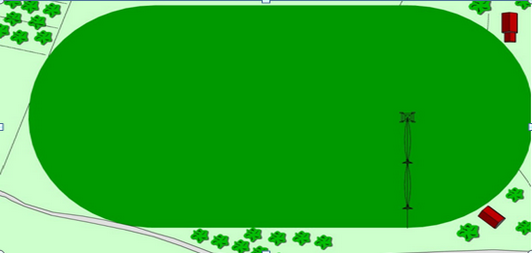

Working diagram:
Application:
it is suitable for large width, the head of a semicircle plot.
Specification parameters:
| No. | item | specification |
| 1 | The main water pipe |
6-5/8”（168mm*3mm thickness） |
| 2 | enforced type | 8”（203mm） |
| 3 | span as per standar | 6-5/8”（168mm）x 54.5m |
| 4 | extended span | 61.3m |
| 5 | overhang pipe | 141mm x 13.4m |
| 6 | extended pipe for overhang | 101mm x 13.4m |
| 7 | Working power supply and voltage | |
| 8 | power |
4—11KW |
| 9 | tire size | 14.9 x 24 Tyre |
| 10 | Driving mode | Gear box |
| 11 | the motor power | 0.75hp--1.5hp |
| 12 | Motor | 40:1 |
| 13 | Translation type tire turbine reducer | 50:1 |
| 14 | water supply | supplied by ditch or hose |
| 15 | inside pressure | 0.35—0.45Mpa |
| 16 | Height of the truss from the ground | 3.1m |
| 17 | the distance between sprinklers | 2.23m |
